3D Scanning for Tailshaft Clearance Verification

I use 3D scanning and CAD any time the fitment question is more complicated than a tape measure can answer. Sure approximation with a tape and measure can get you you close but close enough is in fact not good enough in alot of cases. This tailshaft job is a good example. I wanted to know whether a larger carbon shaft would actually clear the exhaust and tunnel without modification before I committed to a part choice. That is exactly the sort of problem 3D scanning is useful for in motorsport: it turns a "looks like it might fit" question into something I can measure and compare. I can know the exact modification required prior to committing to a solution.

For this application Driveshaft Shop / Diff Technics provides two options, 3.25" and 3.8". Being much larger than standard and made from carbon fibre, exhaust clearance was always going to be a concern. On top of that, the OEM tailshaft is a two-piece design while the aftermarket shaft is one-piece, so the path through the tunnel changes slightly. Compound angles make that harder to judge by eye than a tape measure would suggest.

Why I scanned it

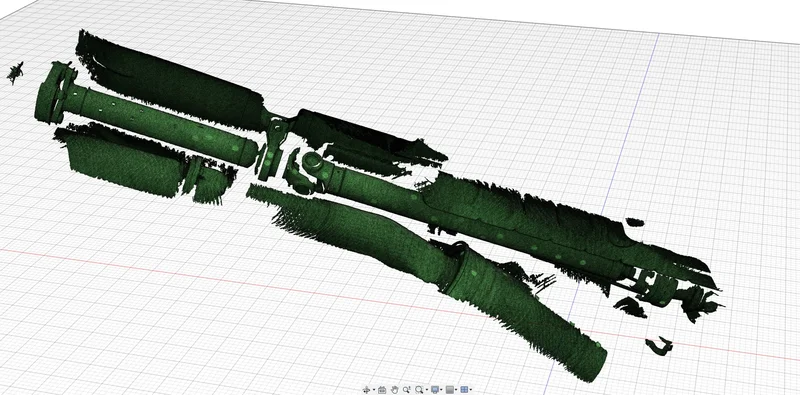

The workflow was simple. I scanned the OEM tailshaft, the exhaust and the underbody in situ, then brought this mesh into CAD and compared the available space against both replacement shaft sizes. The important part is that the scan gave me detailed and accurate information about all possible dimensions I could need without any dissasembly of the vehicle. This has significant advantages over simplified drawing or a few hand measurements taken from easy-to-reach points.

That gives me a repeatable way to do a few things at once:

• ■check fitment before I order or build anything
• ■compare multiple design options side by side
• ■see where the real clearance problem is instead of guessing
• ■reverse engineer factory geometry when the part itself is no longer enough to work from

This is why 3D scanning has become so useful in motorsport and reverse engineering. If I am trying to duplicate an existing mounting point, redesign a bracket, validate packaging around an engine bay, or improve a factory layout without changing the whole car, the scan gives me not only the measurements I wanted at the time but often all possible measurements I could not obtain at the time or did not know I needed at the time. This often saves significant time going back and forth for additional data.

Scan to CAD

For this sort of job I am not trying to create a perfect show model of every surface. The goal is to capture enough data to show all the major decisions points. In this case that meant the tailshaft path, tunnel, exhaust, muffler, original tail shaft start and end points and flange areas. Once that geometry is in CAD, I can model the proposed shaft sizes within minutes as clean cylinders and check them against the scan.

That is the difference between scanning for reverse engineering and scanning for a pretty render. I do not need every bolt head to be perfect. I need enough accurate geometry to make a decision about clearance, movement, fabrication work and part selection.

It also keeps the process practical. I can scan the existing setup, test the 3.25" and 3.8" options digitally, and then decide what physical work is actually required. If the CAD says the exhaust needs to move, I can plan or budget for that work before the shaft turns up instead of discovering the problem during final fitment.

What the CAD showed

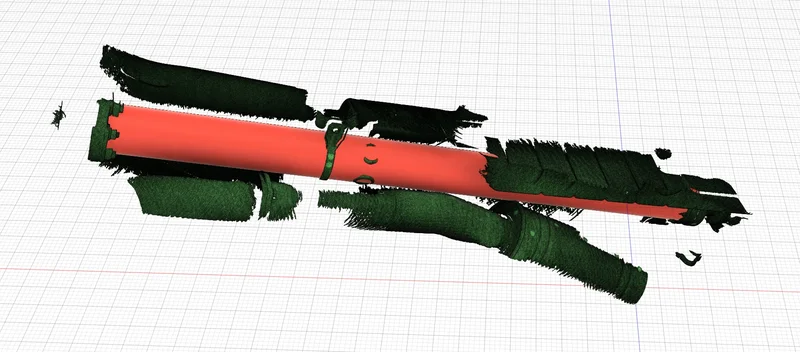

The images show the original tailshaft in green versus the 3.25" option in yellow and the 3.8" option in red.

The 3.25" shaft clears with only a few millimetres to spare. That is not enough on its own because you still have to account for exhaust growth, tailshaft movement under load, and the chance of bottoming the car out.

The 3.8" option is worse again. It shows clear interference with the muffler and forward flange. That is the sort of thing that is easy to miss when you only measure a few straight sections by hand, especially when the part path changes from two-piece to one-piece.

In this case the decision was made to go with the 3.8" option as the exhaust needed to be modified either way. A few mm of clearance between the exhaust and the carbon shaft is simply not enough to prevent contact under all use cases which would be an expensive replacement.

Where this workflow helps

This is where 3D scanning earns its keep in motorsport and part development. It helps with:

• ■reverse engineering factory parts before you cut or replace anything
• ■checking clearance around tailshafts, exhausts, diff housings, intercoolers and chassis rails
• ■validating brackets and mounting points before you commit to fabrication
• ■comparing multiple design options side by side in CAD
• ■confirming fitment on parts that are awkward to measure physically

I use it because it saves time and avoids expensive guesswork. If the CAD says there is interference, I would rather see that before I order material or have a design fabricated. It is not about replacing traditional measrument techinques. It is about expanding the available options to have the right tool for the job more often and have better information before any irreversible work happens.

That same scan-to-CAD workflow is handy anywhere I am packaging parts in a tight space. It is also the sort of process I use when I am working out whether a new exhaust or heat management setup will actually fit without forcing a compromise later in the build. I covered that side of the problem in How F1 and WRC Solve Exhaust Heat Problems - Multi-Layer Thermal Shielding Explained.

If you need 3D scanning, CAD work or reverse engineering for a motorsport project, the contact page has the current services.
