OmniCAN V1 PCB and Prototype Housing Update

OmniCANHardwarePrototyping

Progress update!!! 💻🖱 OmniCAN V1 boards are in, Prototype housings produced and all wired up.

More updates to come with keep an eye out for the website going live and testing applications.

Prototype yellow 3D-printed OmniCAN enclosure mounted next to a Haltech Elite Pro Plug-in "Barra" ECU in a Ford Falcon XR6 Turbo engine bay.
FIG // Prototype yellow 3D-printed OmniCAN enclosure mounted next to a Haltech Elite Pro Plug-in "Barra" ECU in a Ford Falcon XR6 Turbo engine bay.

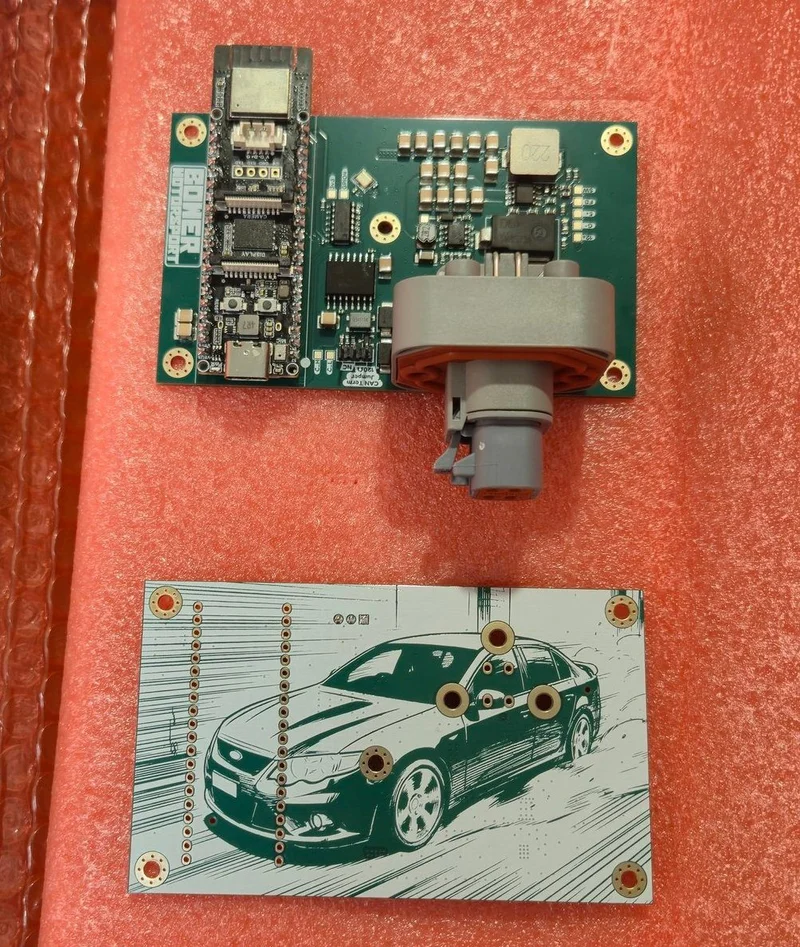

Fully populated OmniCAN V1 prototype PCB showing the Barra silkscreening on the back side of the PCB.
FIG // Fully populated OmniCAN V1 prototype PCB showing the Barra silkscreening on the back side of the PCB.
