How F1 and WRC Solve Exhaust Heat Problems - Multi-Layer Thermal Shielding Explained

Managing exhaust heat in tight engine bays is a constant challenge. When turbo dump pipes, manifolds or even NA headers route close to brake master cylinders, electronic wastegates with failsafe’s when operating over 150°C, or coolant reservoirs, thermal management turns from a nice to have to a necessity.

Many of these components will outright fail if exposed to temps exceeding their working limits which can range from inconvenient to outright dangerous. Often traditional heat wrap and generic barriers fall short in these situation for a variety of reasons. Corrosion concerns, packaging, easy of install and removal, safety etc.

The solution used in F1 and WRC and many other top level motorsport series is a multi-layer approach combining insulation with environmental protection.

🛡️ The Multi-Layer System

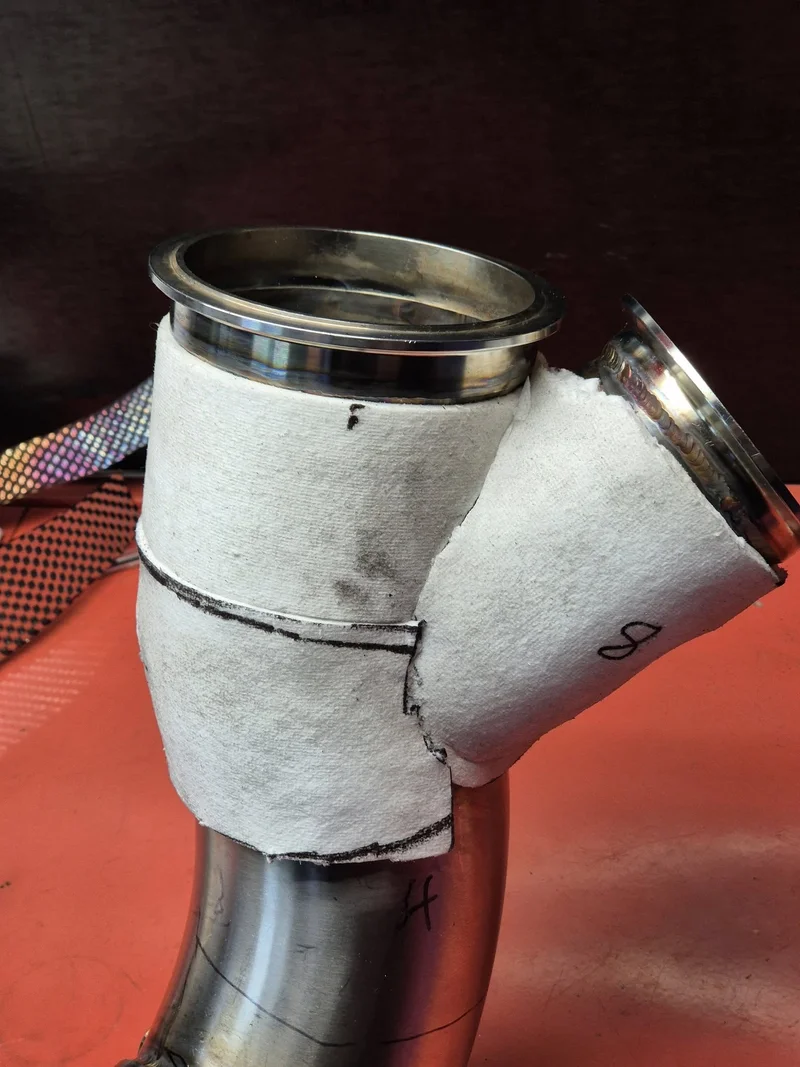

The system uses 6mm ceramic fibre paper as the primary thermal barrier, contained by a 0.15mm embossed 304 stainless steel outer shell. The stainless serves three critical functions - it holds the ceramic fibre in place under vibration and thermal cycling, protects against environmental damage including weather and oil contamination, and prevents the ceramic fibre from becoming fuel or oil soaked in the event of a leak or fire.

Oil-saturated basalt fibre ( “titanium” wrap), ceramic fibre or fibreglass wrap turns a manageable fire into a persistent problem that is difficult to extinguish. This can be the difference between competing next session or season.

The outer shell is spot welded rather than continuously sealed. This approach keeps the thin stainless from warping while allowing moisture to escape, preventing condensation buildup that would compromise the ceramic fibre insulation and increase corrosion significantly.

The embossing pattern provides structural rigidity to the 0.15mm material and creates small air pockets where the dimples contact the ceramic fibre, adding a minor improvement to the insulative effect, though this is secondary to the mechanical benefits.

🧪 Testing and Results

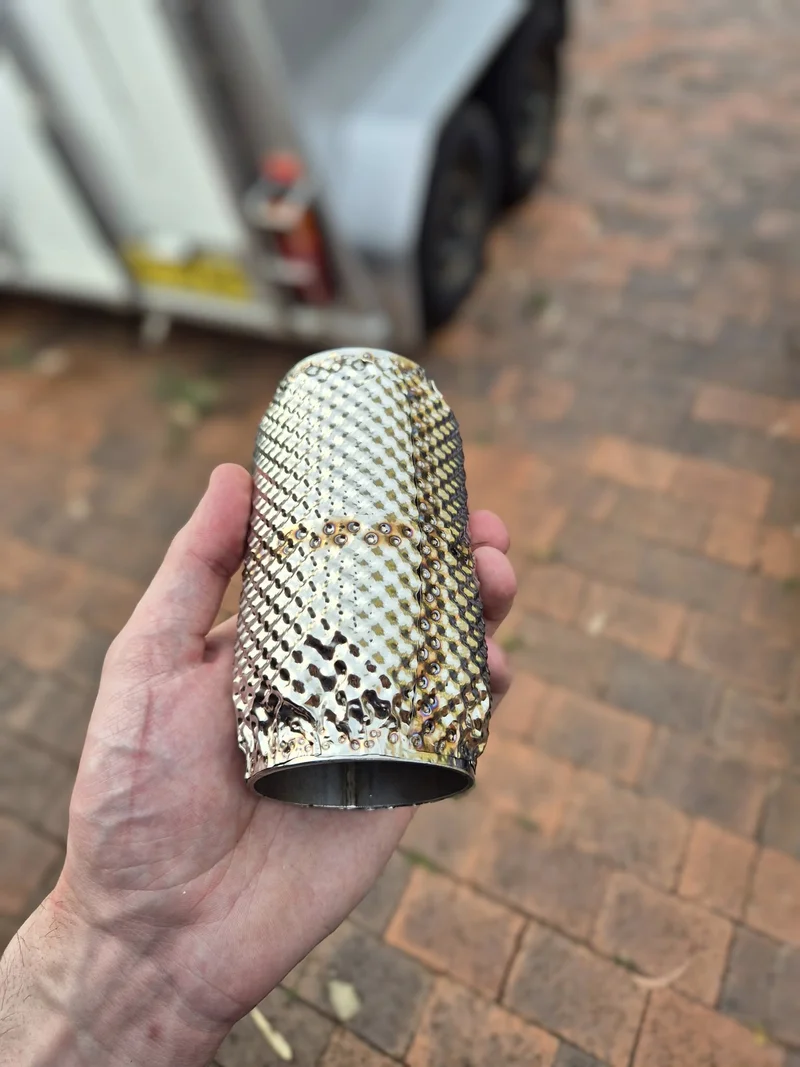

The shielded side can be held comfortably for 29 seconds under a MAPpro torch before becoming uncomfortable. Bare metal transfers heat in approximately 3 seconds.

That 26 second difference demonstrates the ceramic fibre doing the heavy lifting on thermal resistance - the stainless shell alone provides minimal insulation but keeps everything together and protected. This difference is significant enough to change what components can be packaged near high-temperature exhaust routing.

⚙️ Why I Built This

The reason for developing my own method of installing this system was necessity on my own vehicle. A carbon fiber tailshaft installation required heat protection from the exhaust running parallel to it. Carbon fiber shafts are excellent in motorsport applications as they are lighter, stronger and safer – however there is one key weakness, heat.

In my application carbon shaft was necessary over a conventional steel or aluminium option due to the length involved and the critical speed limitations of metal shafts at that length. Protecting a component that expensive from heat damage justified doing the research properly rather than hoping generic wrap would be sufficient.

This multi-layer approach is not new – it is standard practice in F1, WRC, and other top-level motorsport. What is lacking is accessible information on how to implement it. Most of what exists sits in manufacturer technical documents or gets passed between specialists who have worked at that level. The goal here is to make the methodology available to those dealing with the same problems on club-level and privateer builds.

📍 Where This Matters

The applications where multi-layer shielding provides value are numerous:

• ■Brake master cylinders positioned near turbo manifolds or dump pipes can experience fluid boiling and vapor lock.
• ■Electronic wastegate actuators fail when exhaust routing puts them in direct thermal line.
• ■Coolant expansion tanks mounted above or adjacent to exhaust routing develop stress cracks and eventual failure, or at the very least absorb additional unnecessary heat that the cooling system must dissipate.
• ■Wiring harnesses and sensors positioned for packaging efficiency suffer accelerated insulation breakdown or outright failure.

For turbocharged applications, there is a secondary benefit beyond component protection. Maintaining exhaust gas temperature from combustion chamber to turbine wheel directly impacts turbo efficiency. Every degree lost to radiant and convective heat transfer before the turbine represents lost energy for compressor drive. This thermal retention is why top-level motorsport invests in comprehensive exhaust insulation even when packaging allows generous clearances.

🏺 Ceramic Coating as an Alternative

For applications where physical clearance prevents multi-layer shielding, high-temperature ceramic coating applied directly to the exhaust component provides an alternative. Air-cure formulations rated to approximately 980°C add negligible thickness while reducing radiant heat transfer and providing corrosion protection.

It fills the gap where space constraints or budget make full shielding impractical, but is not a replacement for proper multi-layer shielding in high-demand applications.

⚖️ Trade-offs

The downsides require honest discussion. Cost and fabrication time are significant – this is not a bolt-on solution. Each installation requires measuring clearances, templating the shield geometry, and fitting components that follow complex compound curves.

More critically, trapping heat in the exhaust system accelerates corrosion. The elevated exhaust wall temperatures increase oxidation rates substantially. This means careful consideration of the thermal limits of the exhaust material must take place and limits application to stainless steel exhaust components only.

Of the commonly available grades, 316 is ideal, 321 is better again and 304 stainless can be used but will experience accelerated corrosion. Mild steel exhaust components should not be wrapped or shielded using heat-trapping methods. This is a calculated trade-off where component protection and performance gains outweigh exhaust longevity in most motorsport applications.

📝 Summary

Effective exhaust thermal management comes down to understanding what you are protecting, measuring your available clearances, and applying the appropriate solution:

• ■Full multi-layer shielding for critical zones.
• ■Stainless shell only where space is limited.
• ■Ceramic coating where nothing else fits.

Additionally, combining multiple methods can be highly effective – such as multi layer shielding over the top of ceramic coating. This provides the incredible insulative properties of both system and helps to mitigate corrosion concerns when using lower grade stainless steels.

For those dealing with heat-related component failures or tight packaging on turbocharged builds, this approach provides a reliable solution that scales to the problem.
